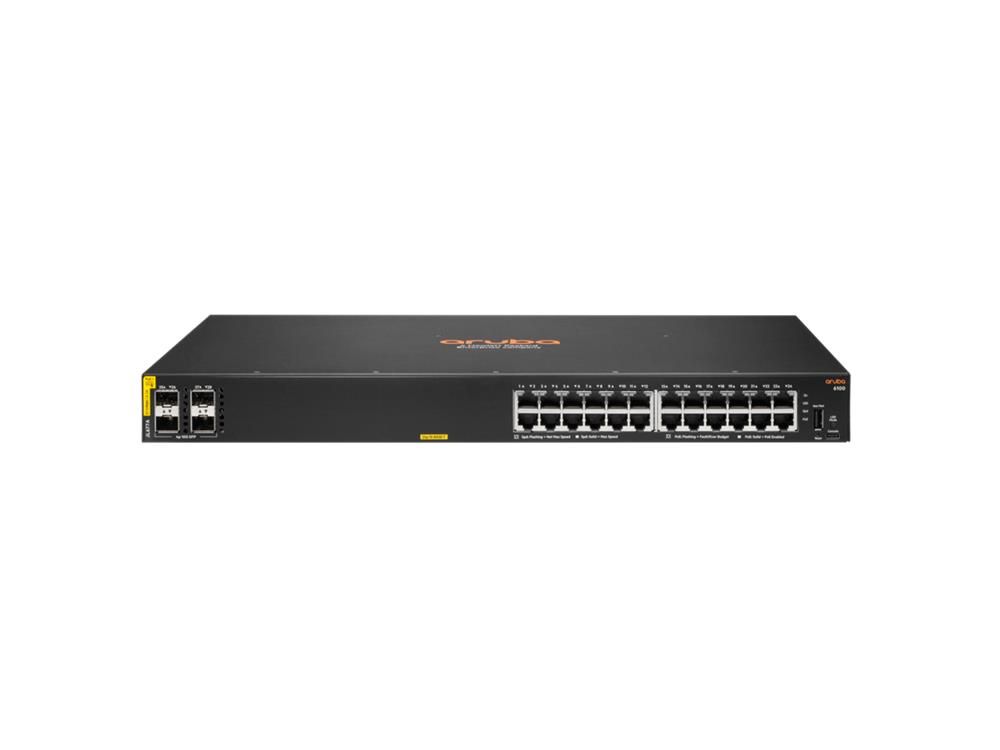

Name: HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch
SKU: JL677A#ABA
Price: 3941.0 USD
Availability: InStock

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

$3 941.00

End Customer Required

In stock

Product Details

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Specifications

Category	Specification
Network Device Type	Switch
Model	HPE Aruba Networking CX 6100 Switch Series
Form Factor	1U
Connectivity Technology	Wired
COO (Country of Origin)	China / Vietnam / Taiwan
UNSPSC Code	43222612

Performance & Hardware

Feature	Details
Data Transfer Rate	1 Gbps
Data Link Protocol	Gigabit Ethernet
Processor Type	ARM Cortex A9
RAM Installed	4 GB
Flash Memory	16 GB
Media Layer Supported	Layer 2, Layer 3
MAC Address Table Size	8,192
Jumbo Frame Support	9,198 bytes

Networking

Feature	Details
Ports Quantity	30
10/100/1000BASE‑T Ports	48
SFP+ Ports	4
Interfaces	24× 10/100/1000BASE‑T, 4× 1G/10G SFP, 1× USB‑C Console, 1× USB Type‑A Host
Compliant Standards	802.1w, 802.1s, 802.1p
Remote Management Protocols	SNMP, IPv4, IPv6
Routing Protocol	Static IP Routing
Authentication Methods	RADIUS, 802.1X, MAC

Power

Feature	Details
Power Device Type	Power Supply
Power Provided	500 W
Max Power Consumption	455 W
Voltage Required	100–127 VAC / 200–240 VAC
PoE Support	Yes
PoE Power Budget	370 W

Physical Specifications

Feature	Details
Width	17.4 in
Depth	10.56 in
Height	1.73 in
Weight	9.24 lbs

Environmental

Feature	Details
Min Operating Temperature	0°C
Max Operating Temperature	45°C
Min Storage Temperature	–40°C
Max Storage Temperature	70°C

Service & Support

Feature	Details
Support Type	Limited Lifetime Warranty
